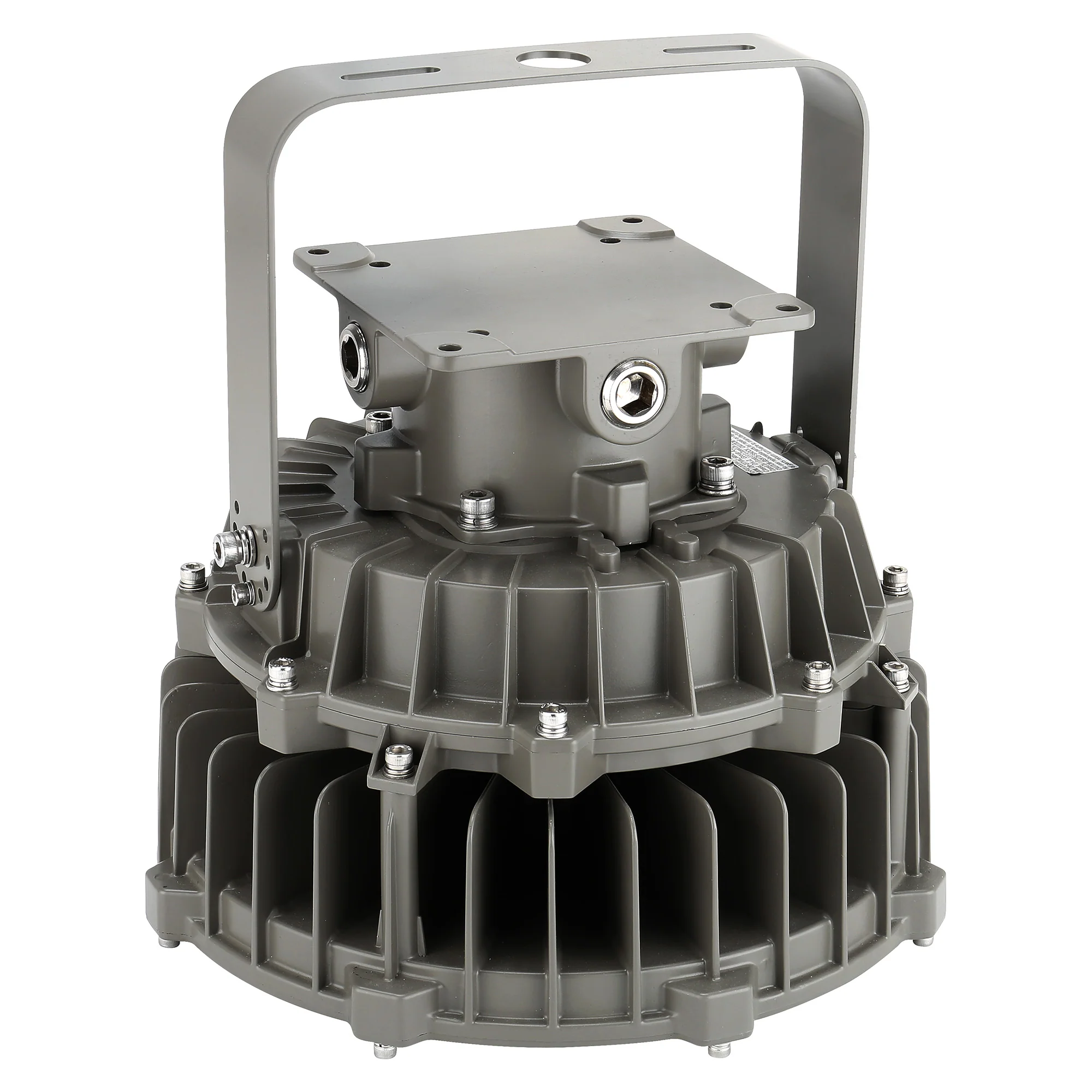

LED Hazardous Location Lights - HPHR01 Series, 15500lumens, 5000K, 347-480V

LED Hazardous Location Lights - HPHR01 Series, 15500lumens, 5000K, 347-480V

Description
LED Hazardous Location Lights engineered for hazardous environments with high-efficiency output, corrosion-resistant construction, and IP66, IK08 protection. Available in multiple wattages, beam distributions, and mounting options, with optional emergency backup on selected models. Certified for Class I, Division 2 and Class II hazardous locations, built for oil and gas, chemical, marine, mining, and other industrial applications. Wide operating temperature range and backed by a 5-year warranty.

Construction
• Robust cast aluminum housing with low copper content.
• 3,000-hour salt-fog finish for harsh and corrosive environments.
• Precision-engineered fins maximize heat dissipation.
• Rugged construction for long-lasting, safe operation.
• Shock and vibration resistant.
Electrical
• Universal 120–347 VAC or 347–480 VAC input.
• 0–10V/PWM/Rx 3-in-1 dimming.
• PF >0.9, THD <20%.
• Operating temperature: -40°C to +65°C.
• Built-in 6kV surge protection; optional 10kV (120–347V) or 20kV (347–480V).
• NEC/CEC T-Code: 100W: T5 (+45°C) / T4A (+65°C); 200W: T4A (+50°C) / T4 (+65°C).
Optics
• Three beam distributions: 60°, 90°, and 120°.
• Scalable lumen packages: 10,000–30,000 lm.
• Durable PC lenses resist discoloration, shattering, chipping, and breaking.
• Engineered LED optics provide superior uniformity and maximize fixture spacing.
• Precision optical design optimizes light distribution, efficiency, and application spacing.
Weight
• 100W: 22.58±1 lb
• 200W: 22.63±1 lb
Model
• HR01-100W-27V(48V)50K
• HR01-100W-34V(48V)50K
Note: “27V” represents 120-277VAC, “34V” represents 120-347VAC, “48V” represents 347-480VAC.
Certifications
• IP66
• UL
Mount
• Trunnion Mount (default)
• Ceiling mount (option)
• Pendant (option)
• Wall Mount (option)
• Round pole mount (option)
Application
• Oil and gas rigs
• Petrochemical plants
• Paint spray booths
• Other hazardous location
Lifespan
• Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
• 5-year warranty
$108.50

Original: $309.99

-65%
LED Hazardous Location Lights - HPHR01 Series, 15500lumens, 5000K, 347-480V—

$309.99

$108.50

Product Information

Shipping & Returns

Description

Description
LED Hazardous Location Lights engineered for hazardous environments with high-efficiency output, corrosion-resistant construction, and IP66, IK08 protection. Available in multiple wattages, beam distributions, and mounting options, with optional emergency backup on selected models. Certified for Class I, Division 2 and Class II hazardous locations, built for oil and gas, chemical, marine, mining, and other industrial applications. Wide operating temperature range and backed by a 5-year warranty.

Construction
• Robust cast aluminum housing with low copper content.
• 3,000-hour salt-fog finish for harsh and corrosive environments.
• Precision-engineered fins maximize heat dissipation.
• Rugged construction for long-lasting, safe operation.
• Shock and vibration resistant.
Electrical
• Universal 120–347 VAC or 347–480 VAC input.
• 0–10V/PWM/Rx 3-in-1 dimming.
• PF >0.9, THD <20%.
• Operating temperature: -40°C to +65°C.
• Built-in 6kV surge protection; optional 10kV (120–347V) or 20kV (347–480V).
• NEC/CEC T-Code: 100W: T5 (+45°C) / T4A (+65°C); 200W: T4A (+50°C) / T4 (+65°C).
Optics
• Three beam distributions: 60°, 90°, and 120°.
• Scalable lumen packages: 10,000–30,000 lm.
• Durable PC lenses resist discoloration, shattering, chipping, and breaking.
• Engineered LED optics provide superior uniformity and maximize fixture spacing.
• Precision optical design optimizes light distribution, efficiency, and application spacing.
Weight
• 100W: 22.58±1 lb
• 200W: 22.63±1 lb
Model
• HR01-100W-27V(48V)50K
• HR01-100W-34V(48V)50K
Note: “27V” represents 120-277VAC, “34V” represents 120-347VAC, “48V” represents 347-480VAC.
Certifications
• IP66
• UL
Mount
• Trunnion Mount (default)
• Ceiling mount (option)
• Pendant (option)
• Wall Mount (option)
• Round pole mount (option)
Application
• Oil and gas rigs
• Petrochemical plants
• Paint spray booths
• Other hazardous location
Lifespan
• Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
• 5-year warranty
